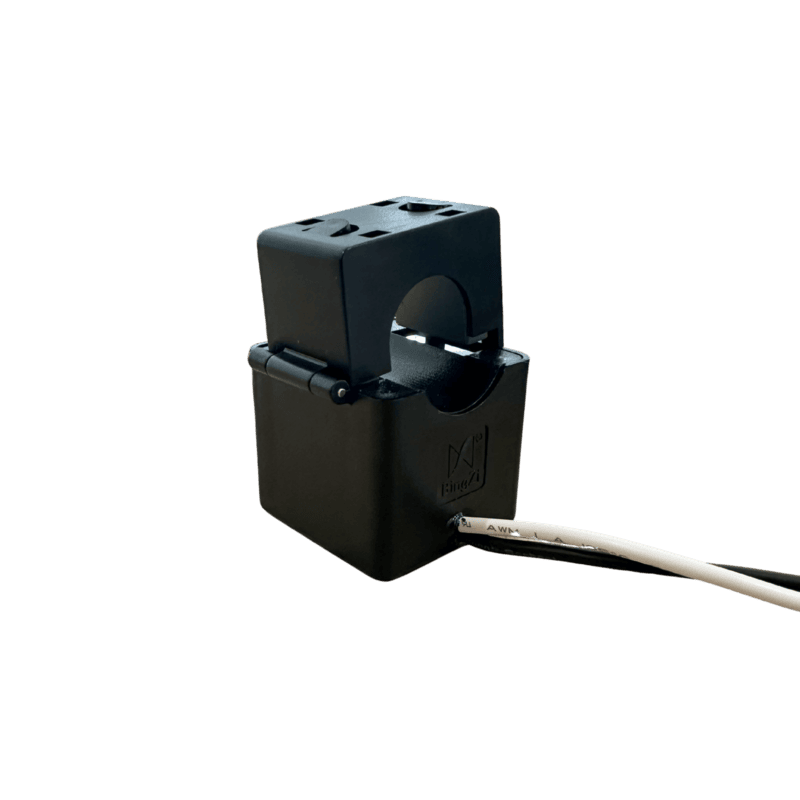

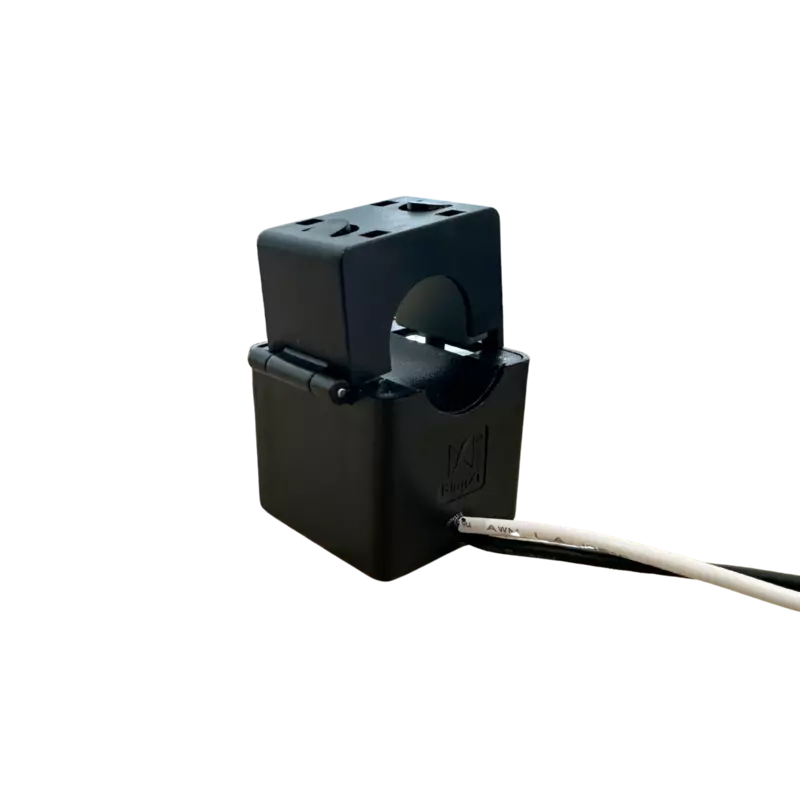

GET CT Clamp

Load Management Accessory for GET SolarCharge

The GET CT Clamp is a professional current transformer for GET SolarCharge chargers, enabling dynamic load management to prevent overloads or tripped circuits.

Easy Installation: Opening/closing clamp for simple mounting.
10 m Cable Included: Connects directly to your charger.
Safe & Reliable: Ferrite core with industry-standard insulation and flame retardancy.
Flexible Use: Monitors power to help balance loads on limited-capacity sites.

Usage:

7 kW single-phase charger: 1 clamp required
22 kW three-phase charger: 3 clamps required

Sold individually.

Non-returnable

$110.00

Available Offer

Product Details

Model: TAK016 Series Switchable AC Current Transformer
Operating temperature: -20 ℃ to +50 ℃
Relative humidity: ≤90% at 40 ℃
Atmospheric pressure: 860–1060 mbar
Core material: Ferrite
Rated input current: 120 A
Rated output current: 40 mA
Rated sampling resistor (RL): 7.5 Ω
Rated sampling voltage: 0.3 V
Nonlinearity: ≤0.5 %
Linear range: 3 × rated input
Withstand voltage: ≥2 kV
Operating frequency range: 50 Hz – 200 kHz
Insulation & heat resistance: Grade B (130 ℃)
Safety features: Insulation resistance >100 MΩ, dielectric strength 1 kV/50 Hz/1 min, UL94-V0 flame retardant
Cable length: 10 m

Important: The secondary circuit must never be open-circuited. Installation should be completed by a licensed electrician.
