⚡ Up to 180kW DC Fast Charging. Two Vehicles at Once.

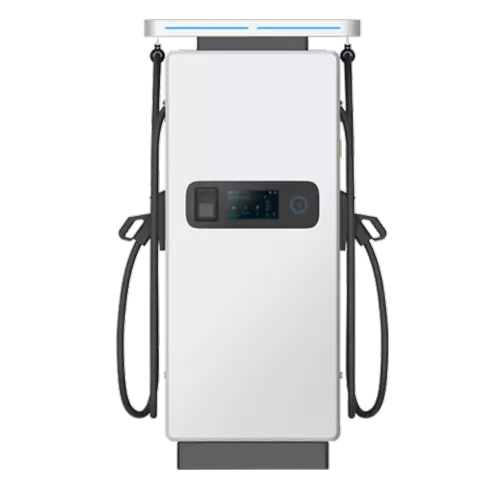

The Sungrow 180kW Dual DC EV Charger has two CCS2 outlets, a 10-inch color touchscreen, RFID access and OCPP connectivity. IP65 rated with C5 anti-corrosion protection and a lifespan of over 10 years.
$53,310.00
Available Offer
Product Details
Power output: 180kW (1 x 180kW or 2 x 90kW) across two CCS2 outlets. Output current per outlet of 250A, or 380A optional
Dimensions: 2030H x 930W x 615D mm
Weight: 380kg to 500kg depending on the number of power modules
Installation: Floor mounted
Cable: 2 x CCS2 cables, 5m standard, 7m optional, with cable management system
Smart features: 10-inch color touchscreen, RFID, plug & play, auto charge, OCPP 1.6J (ready for 2.0.1), WLAN, Ethernet and 4G, OTA firmware updates via iEnergyCharge, DIN SPEC 70121 and ISO 15118 vehicle communication
Payment modes: RFID card, plug & play and auto charge (standard); plug & charge and debit or credit card (optional). MID-certified meter integrated; Eichrecht or PTB-certified meter optional
Weather rating: IP65; C5 anti-corrosion; operating range minus 35°C to 55°C
Compatibility: Works with CCS2 electric vehicles; adaptive voltage range 200 to 1000V DC
Requirements: 3-phase power supply (3/N/PE, 380/400V AC ±10%, 50/60Hz), rated input current 289A, max AC cable 240mm², professional electrician installation
Load management: Dynamic load management to optimize EV charging
Solar compatibility: PV-ESS system compatibility reserved
