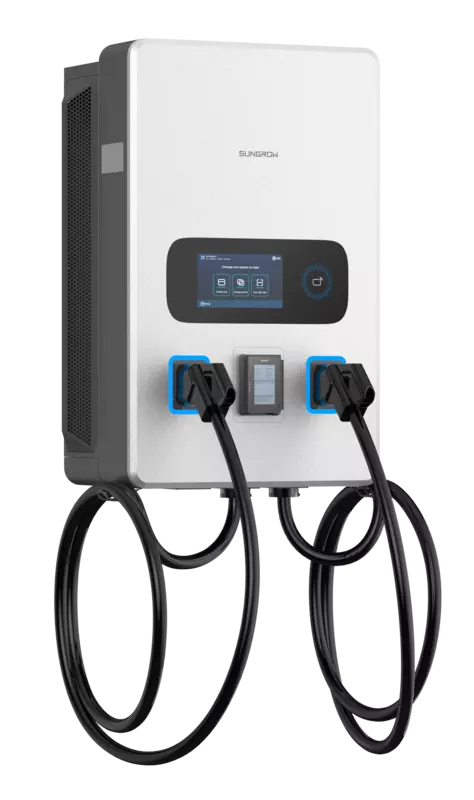

The Sungrow 60kW Dual DC EV Charger has two CCS2 outlets, a color touchscreen, RFID access and OCPP connectivity. IP65 rated with a lifespan of over 10 years, and available for pedestal, wall-mount or trolley installation.
Non-returnable
$23,573.00
Available Offer
Product Details
Power output: 60kW (1 x 60kW or 2 x 30kW) across two CCS2 outlets. Output current of 200A
Dimensions: 1050H x 660W x 390D mm
Weight: Up to 160kg (excluding wall mount and pedestal)
Installation: Pedestal, wall-mounted or trolley
Cable: 2 x CCS2 cables, 5m standard with cable management system, 7m optional
Smart features: 10.1-inch color touchscreen, RFID, QR code, auto charge, OCPP 1.6J (2.0.1 coming soon), Ethernet, 4G and Wi-Fi, OTA firmware updates via iEnergyCharge, DIN SPEC 70121 and ISO 15118 vehicle communication
Payment modes: RFID card, QR code and auto charge (standard); credit card and plug & charge (optional); payment terminal (optional). Supports CE, MID or PTB energy meters
Weather rating: IP65; C5 anti-corrosion; operating range minus 30°C to 60°C (derating above 50°C)
Compatibility: Works with CCS2 electric vehicles; adaptive voltage range 150 to 1000V DC
Requirements: 3-phase power supply (3P/N/PE, 323 to 440V AC, 50/60Hz), rated input current 94A, max AC cable 95mm², professional electrician installation
Load management: Dynamic load management to optimize EV charging
Solar compatibility: PV-ESS system compatibility reserved
