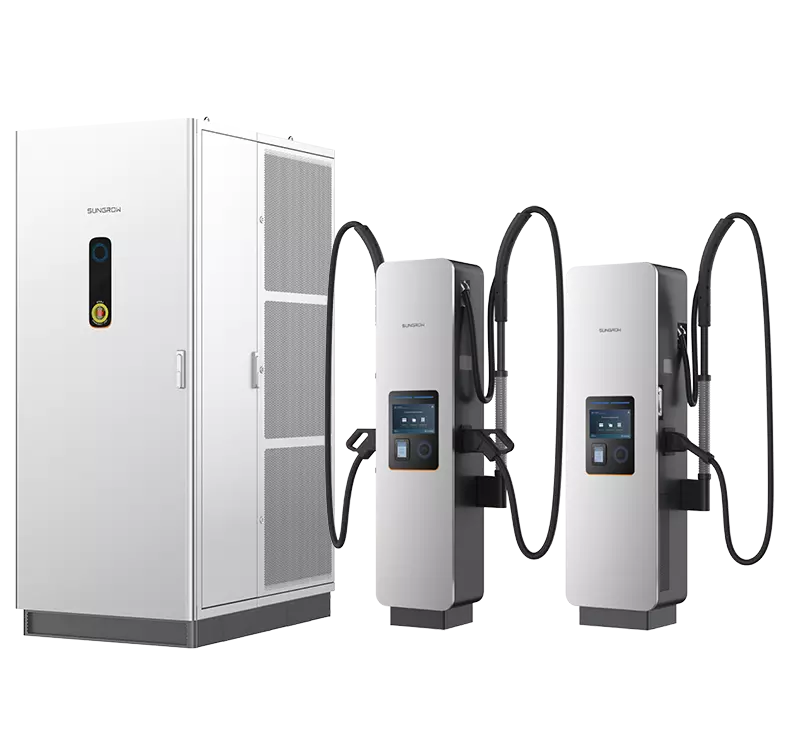

Sungrow 240kW / 360kW / 480kW Dual DC EV Charger
Sungrow 240kW / 360kW / 480kW Dual DC EV Charger
⚡ Ultra Fast DC Charging. Up to 4 Vehicles.
The Sungrow 240kW / 360kW / 480kW Dual DC EV Charger is a power cabinet and dispenser system with dynamic power allocation, RFID access and OCPP connectivity. IP65 rated with C5 anti-corrosion protection and a lifespan of over 10 years.
Non-returnable
$0.00 $0.00
Available Offer
Product Details
- Power output: Power cabinet in 240kW (800A), 360kW (1200A) or 480kW (1600A). Serves up to 4 vehicles simultaneously with dynamic power allocation by 30kW granularity
- Dimensions: Power cabinet 2200H x 900W x 1380D mm. Air-cooled 240kW dispenser 1800H x 430W x 330D mm. Air-cooled 480kW and liquid-cooled dispensers 1800H x 520W x 330D mm
- Weight: Power cabinet 1100kg. Dispensers 140kg (air-cooled 240kW), 125kg (air-cooled 480kW) or 121kg (liquid-cooled)
- Installation: Floor mounted
- Cable: CCS2, spring-assisted cable management system. Air-cooled 240kW dispenser: dual cable (400A + 400A) or single cable optional. Air-cooled 480kW dispenser: single cable 400A. Liquid-cooled dispenser: single cable 500A. Max output current 600A (boost) on all dispenser types. 5m standard, 7m optional (liquid-cooled dispenser 5m only)
- Smart features: 10-inch color touchscreen and LED display on dispenser, LED indicator on power cabinet, RFID (including NFC), OCPP 1.6J (2.0.1 coming soon), WLAN, Ethernet and 4G, OTA firmware updates, DIN 70121 and ISO 15118 vehicle communication, emergency button
- Payment modes: RFID card / plug & play / auto charge / plug & charge / payment terminal (optional). MID-certified DC energy meter; Eichrecht-certified DC energy meter optional
- Weather rating: IP65; C5 anti-corrosion; operating range minus 35°C to 55°C (liquid-cooled dispenser minus 30°C to 50°C)
- Safety features: Over/under voltage, overload, over-temperature, leakage current, short-circuit and surge protection (power cabinet), emergency stop, IK10 impact resistance (touchscreen IK08)
- Compatibility: Works with CCS2 electric vehicles; adaptive voltage range 200 to 1000V DC
- Requirements: 3-phase power supply (3/N/PE, 400V AC ±10%, 50/60Hz), rated input current 770A (480kW), 577A (360kW) or 385A (240kW), professional electrician installation
- Load management: Dynamic power allocation by 30kW granularity
- Solar compatibility: PV-ESS system compatibility reserved
- Warranty: 3 years (standard)
- Certifications: CE, CB, RCM, PEA, UKCA
Note: Pricing is for PRODUCT only and does not include installation. Installation can be quoted separately.
